300mm(12")Arrow Traffic Light
Product Overview
Three lights, three colors, separate lamp panel in geometric position;
Low power consumption, long life span, stable working, less maintenance and high visibility;
Distribution of luminous intensity, luminance uniformity, chromaticity coordinates and structural integrity conform to EN12368:2015;
Compliance with CE, FCC and RoHS certification;
Features
l Back frame design；
l Horizontal installation and vertical installation are both available；
l Every lamp panel can be opened independently;
l The rotation angle of the lamp body ≥ 30°；
l MTBF(Mean Time Between Failure)≥100,000 hours;
l Support adjusting brightness, checking the status of lights and the damage status of lamp beads by HiPLC technology(optional);
Technical Parameters
Display | Arrow |
Communication Method | HiPLC(Optional) |
Diameter | 300mm(12“) |
Viewing Angle | 30° |
Viewing Distance | ≥300m |
Working Voltage | AC85V-265V，50Hz/60Hz |
Rated Power | ≤19W |
Working Temperature | -40℃～+80℃ |
IP Grade | IP54 |
Impact Property | IR2 |
Overall Dimensions | 511*492*1220mm（including the brim and frame） |
Housing Material | Aluminum, Black Spraying Housing |
Overall Weight | 13KG |
Installation Method | Back Frame(stainless steel strip and special fasteners) |

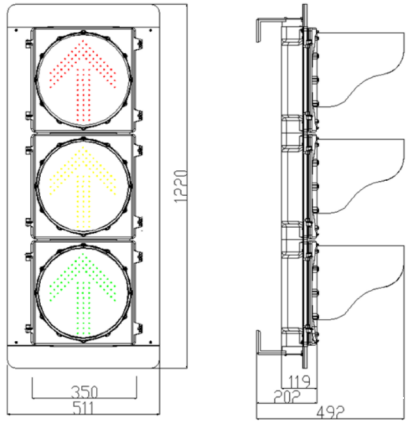

Dimensions
